Mã sản phẩm:F111-G

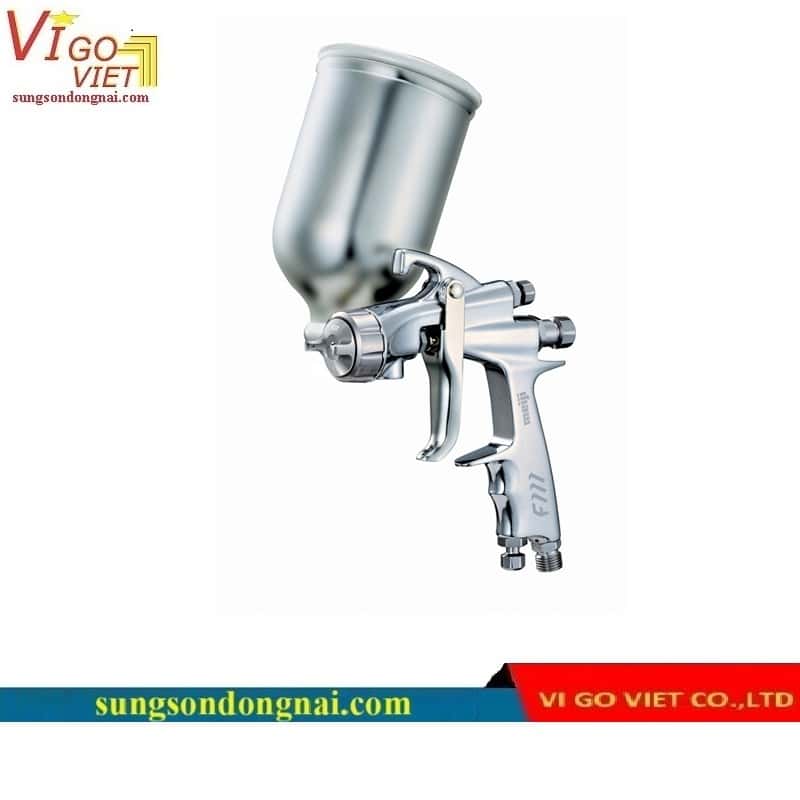

Tên sản phẩm:Súng phun sơn cầm tay F111-G
Hãng sản xuất:
Xuất xứ:
| ▼F111 Series | |||||||
| Model No. | F111-P08P | F111-P10P | F111-P13P | F111-P15P | |||
|---|---|---|---|---|---|---|---|
| Paint feed system | Pressure | ||||||
| Nozzle Bore | mm
(in) |
0.8
(0.031) |
1.0
(0.039) |
1.3
(0.051) |
1.5
(0.059) |
||
| Standard air cap | 08P | 10P | 13P | 15P | |||
| Spraying Pressure | MPa
(PSI) |
0.25
(36) |
|||||
| Spraying distance | mm
(in) |
200
(7.784) |
|||||
| Air con-sumption | L/min
(cfm) |
215
(7.6) |
225
(7.9) |
260
(9.2) |
270
(9.5) |
||
| Paint spraying volume | mL/min | 175 | 230 | 305 | 320 | ||
| Maximum effective pattern width |
mm
(in) |
235
(9.252) |
240
(9.449) |
270
(10.630) |
275
(10.827) |
||
| Pattern Shape | Tulip | ||||||
| Required compressor
output |
kW | 1.5 or more | |||||
| Weight | g
(lbs) [oz] |
292
(0.64) [10.3] |
|||||
| Standard paint cup | Paint pressure feed tanks, diaphragm paint pumps | ||||||
| Model No. | F111-S10 <F111-S10T> |
F111-S13 <F111-S13T> {F111-S13ST} |
F111-S15 <F111-S15T> {F111-S15ST} |
F111-S20 <F111-S20T> |
|
|---|---|---|---|---|---|
| Paint feed system | Suction | ||||
| Nozzle Bore | mm
(in) |
1.0
(0.039) |
1.3
(0.051) |
1.5
(0.059) |
2.0
(0.079) |
| Standard air cap | 10 <10T> |
13 <13T> {13ST} |
15 <15T> {15ST} |
20 <20T> |
|
| Spraying Pressure | MPa
(PSI) |
0.25<0.20>{0.25}
(36<29>{36}) |
|||
| Spraying sidtance | mm
(in) |
200
(7.784) |
|||
| Air con-sumption | L/min
(cfm) |
95<160>
(3.6<5.6>) |
130<180>{205}
(4.6<6.4>{7.2}) |
145<205>{210}
(5.1<7.2>{7.4}) |
160<220>
(5.6<7.7>) |
| Paint spraying volume | mL/min | 85 <70> |
125 <120> (145) |
155 <135> (175) |
215 <180> |
| Maximum effective pattern width |
mm
(in) |
135<165>
(5.315<6.496>) |
160<185>{160}
(6.300<7.283>{6.300}) |
170<195>{170}
(6.693<7.677>{6.693}) |
190<210>
(7.480<8.268>) |
| Pattern Shape | Triangle <Tulip> (Semi-Tulip) |
||||
| Required compressor
output |
kW | 0.4<1.5> or more |
0.75<1.5>(1.5) or more |
||
| Weight | g
(lbs) [oz] |
292
(0.64) [10.3] |
|||
| Standard paint cup | 7SB,10SB-2,7SLB,10SLB-2 | ||||
| Model No. | F111-G10 <F111-G10T> |
F111-G13 <F111-G13T> {F111-G13ST} |
F111-G15 <F111-G15T> {F111-G15ST} |
F111-G20 <F111-G20T> |
|
|---|---|---|---|---|---|
| Paint feed system | Gravity | ||||
| Nozzle Bore | mm
(in) |
1.0
(0.039) |
1.3
(0.051) |
1.5
(0.059) |
2.0
(0.079) |
| Standard air cap | 10 <10T> |
13 <13T> {13ST} |
15 <15T> {15ST} |
20 <20T> |
|
| Spraying Pressure | MPa
(PSI) |
0.25<0.20>{0.25}
(36<29>{36}) |
|||
| Spraying sidtance | mm
(in) |
200
(7.784) |
|||
| Air con-sumption | L/min
(cfm) |
95<160>
(3.6<5.6>) |
130<180>{205}
(4.6<6.4>{7.2}) |
145<205>{210}
(5.1<7.2>{7.4}) |
160<220>
(5.6<7.7>) |
| Paint spraying volume | mL/min | 100 <90> |
150 <145> (170) |
190 <175> (210) |
265 <235> |
| Maximum effective pattern width |
mm
(in) |
145<185>
(5.709<7.283>) |
170<215>{180}
(6.693<8.465>{7.087}) |
185<225>{190}
(7.283<8.858>{7.480}) |
200<240>
(7.874<9.494>) |
| Pattern Shape | Triangle <Tulip> (Semi-Tulip) |
||||
| Required compressor
output |
kW | 0.4<1.5> or more |
0.75<1.5>(1.5) or more |
||
| Weight | g
(lbs) [oz] |
292
(0.64) [10.3] |
|||
| Standard paint cup | 1G-2U,2GD,4GD,4GF-U,4GB-U,4GPA-U,4G-TA | ||||
| Model No. | F111-G08R | F111-G25R | |
|---|---|---|---|
| Paint feed system | Gravity | ||
| Nozzle Bore | mm
(in) |
0.8
(0.031) |
2.5
(0.098) |
| Standard air cap | 08R | 25R | |
| Spraying Pressure | MPa
(PSI) |
0.25
(36) |
|
| Spraying sidtance | mm
(in) |
200
(7.784) |
|
| Air con-sumption | L/min
(cfm) |
65
(2.3) |
160
(5.6) |
| Paint spraying volume | mL/min | 55 | 350 |
| Maximum effective pattern width |
mm
(in) |
35
(1.378) |
50
(1.969) |
| Pattern Shape | Round | ||
| Required compressor
output |
kW | 0.4 or more | 1.5 or more |
| Weight | g
(lbs) [oz] |
292
(0.64) [10.3] |
|
| Standard paint cup | 1G-2U,2GD,4GD,4GF-U,4GB-U,4GPA-U,4G-TA | ||
|
|||
