Mã sản phẩm:F110-P

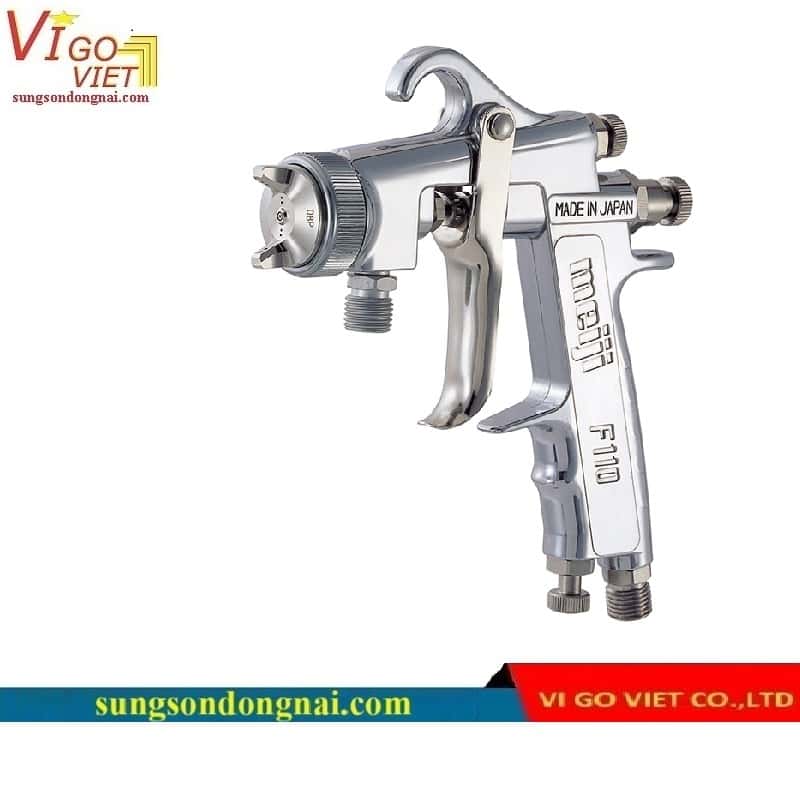

Tên sản phẩm:Súng phun sơn cầm tay: Loại đa năng F110-P
Hãng sản xuất:
Xuất xứ:
| F110 Series | |||||||
| Model No. | F110-P08P | F110-P10P | F110-P13P | F110-P15P | F110-P0810PMAS | F110-P100MAS | |
|---|---|---|---|---|---|---|---|
| Paint feed system | Pressure | ||||||
| Nozzle Bore | mm
(in) |
0.8
(0.031) |
1.0
(0.039) |
1.3
(0.051) |
1.5
(0.059) |
0.8
(0.031) |
1.0
(0.039) |
| Standard air cap | 08P | 10P | 13P | 15P | 10PMAS | ||
| Spraying Pressure | MPa
(PSI) |
0.25
(36) |
0.40
(58) |
||||
| Spraying distance | mm
(in) |
200
(7.874) |
300
(11.811) |
||||
| Air con-sumption | L/min
(cfm) |
220
(7.8) |
230
(8.1) |
280
(9.9) |
290
(10.2) |
340
(12.0) |
|
| Paint spraying volume | mL/min | 180 | 245 | 310 | 330 | 175 | 230 |
| Maximum effective pattern width |
mm
(in) |
230
(9.055) |
240
(9.449) |
270
(10.630) |
275
(10.827) |
245
(9.646) |
260
(10.236) |
| Pattern Shape | Tulip | ||||||
| Required compressor
output |
kW | 1.5 or more | |||||
| Weight | g
(lbs) [oz] |
293
(0.65) [10.3] |
301
(0.66) [10.6] |
||||
| Standard paint cup | Paint pressure feed tanks, diaphragm paint pumps | ||||||
| Model No. | F110-S10 <F110-S10T> |
F110-S13 <F110-S13T> {F110-S13ST} |
F110-S15 <F110-S15T> {F110-S15ST} |
F110-S20 <F110-S20T> |
|
|---|---|---|---|---|---|
| Paint feed system | Suction | ||||
| Nozzle Bore | mm
(in) |
1.0
(0.039) |
1.3
(0.051) |
1.5
(0.059) |
2.0
(0.079) |
| Standard air cap | 10 <10T> |
13 <13T> {13ST} |
15 <15T> {15ST} |
20 <20T> |
|
| Spraying Pressure | MPa
(PSI) |
0.25<0.20>{0.25}
(36<29>{36}) |
|||
| Spraying sidtance | mm
(in) |
200
(7.874) |
|||
| Air con-sumption | L/min
(cfm) |
110<170>
(3.9<6.0>) |
140<200>{215}
(4.9<7.1>{7.6}) |
160<215>{225}
(5.6<7.6>{7.9}) |
175<225>
(6.2<7.9>) |
| Paint spraying volume | mL/min | 90 <75> |
130 <125> (150) |
160 <150> (160) |
210 <180> |
| Maximum effective pattern width |
mm
(in) |
130<160>
(5.118<6.230>) |
160<180>{160}
(6.230<7.087>{6.230}) |
170<185>{170}
(6.693<7.283>{6.693}) |
185<210>
(7.283<8.268>) |
| Pattern Shape | Triangle <Tulip> (Semi-Tulip) |
||||
| Required compressor
output |
kW | 0.4<1.5> or more |
0.75<1.5>(1.5) or more |
||
| Weight | g
(lbs) [oz] |
293
(0.65) [10.3] |
|||
| Standard paint cup | 7SB,10SB-2,7SLB,10SLB-2 | ||||
| Model No. | F110-G10 <F110-G10T> |
F110-G13 <F110-G13T> {F110-G13ST} |
F110-G15 <F110-G15T> {F110-G15ST} |
F110-G20 <F110-G20T> |
|
|---|---|---|---|---|---|
| Paint feed system | Gravity | ||||
| Nozzle Bore | mm
(in) |
1.0
(0.039) |
1.3
(0.051) |
1.5
(0.059) |
2.0
(0.079) |
| Standard air cap | 10 <10T> |
13 <13T> (13ST) |
15 <15T> (15ST) |
20 <20T> |
|
| Spraying Pressure | MPa
(PSI) |
0.25<0.20>{0.25}
(36<29>{36}) |
|||
| Spraying sidtance | mm
(in) |
200
(7.874) |
|||
| Air con-sumption | L/min
(cfm) |
110<170>
(3.9<6.0>) |
140<200>{215}
(4.9<7.1>{7.6}) |
160<215>{225}
(5.6<7.6>{7.9}) |
175<225>
(6.2<7.9>) |
| Paint spraying volume | mL/min | 95 <90> |
150 <160> (180) |
180 <180> (205) |
260 <235> |
| Maximum effective pattern width |
mm
(in) |
140<180>
(5.512<7.087>) |
170<210>{180}
(6.693<8.268>{7.087}) |
180<215>{190}
(7.087<8.465>{7.480}) |
195<240>
(7.677<9.449>) |
| Pattern Shape | Triangle <Tulip> (Semi-Tulip) |
||||
| Required compressor
output |
kW | 0.4<1.5> or more |
0.75<1.5>(1.5) or more |
||
| Weight | g
(lbs) [oz] |
293
(0.65) [10.3] |
|||
| Standard paint cup | 1G-2U,2GD,4GD,4GF-U,4GB-U,4GPA-U,4G-TA | ||||
| Model No. | F110-G08R | F110-G25R | |
|---|---|---|---|
| Paint feed system | Gravity | ||
| Nozzle Bore | mm
(in) |
0.8
(0.031) |
2.5
(0.098) |
| Standard air cap | 08R | 25R | |
| Spraying Pressure | MPa
(PSI) |
0.25
(36) |
|
| Spraying sidtance | mm
(in) |
200
(7.874) |
|
| Air con-sumption | L/min
(cfm) |
75
(2.6) |
155
(5.5) |
| Paint spraying volume | mL/min | 55 | 320 |
| Maximum effective pattern width |
mm
(in) |
35
(1.378) |
50
(1.969) |
| Pattern Shape | Round | ||
| Required compressor
output |
kW | 0.4 or more | 1.5 or more |
| Weight | g
(lbs) [oz] |
293
(0.65) [10.3] |
|
| Standard paint cup | 1G-2U,2GD,4GD,4GF-U,4GB-U,4GPA-U,4G-TA | ||
|
|||
