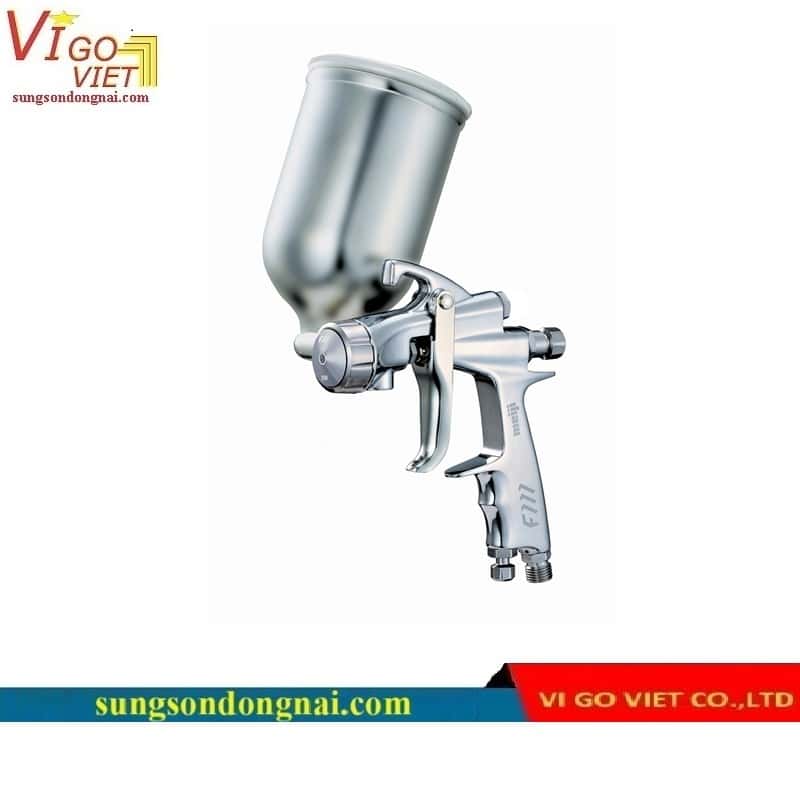

Súng phun sơn F111-GR

Mã sản phẩm: F111-GR

Tên sản phẩm: Súng phun sơn cầm tay F111-GR / Súng phun sơn cầm tay F111-GR

Hãng sản xuất: Meiji

Xuất xứ: Nhật Bản

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Mã sản phẩm: F111-GR

Tên sản phẩm: Súng phun sơn cầm tay F111-GR / Súng phun sơn cầm tay F111-GR

Hãng sản xuất: Meiji

Xuất xứ: Nhật Bản

▼F111 Series
Model No.		F111-P08P	F111-P10P	F111-P13P	F111-P15P
Paint feed system		Pressure
Nozzle Bore	mm (in)	0.8 (0.031)	1.0 (0.039)	1.3 (0.051)	1.5 (0.059)
Standard air cap		08P	10P	13P	15P
Spraying Pressure	MPa (PSI)	0.25 (36)
Spraying distance	mm (in)	200 (7.784)
Air con-sumption	L/min (cfm)	215 (7.6)	225 (7.9)	260 (9.2)	270 (9.5)
Paint spraying volume	mL/min	175	230	305	320
Maximum effective pattern width	mm (in)	235 (9.252)	240 (9.449)	270 (10.630)	275 (10.827)
Pattern Shape		Tulip
Required compressor output	kW	1.5 or more
Weight	g (lbs) [oz]	292 (0.64) [10.3]
Standard paint cup		Paint pressure feed tanks, diaphragm paint pumps

Model No.		F111-S10 <F111-S10T>	F111-S13 <F111-S13T> {F111-S13ST}	F111-S15 <F111-S15T> {F111-S15ST}	F111-S20 <F111-S20T>
Paint feed system		Suction
Nozzle Bore	mm (in)	1.0 (0.039)	1.3 (0.051)	1.5 (0.059)	2.0 (0.079)
Standard air cap		10 <10T>	13 <13T> {13ST}	15 <15T> {15ST}	20 <20T>
Spraying Pressure	MPa (PSI)	0.25<0.20>{0.25} (36<29>{36})
Spraying sidtance	mm (in)	200 (7.784)
Air con-sumption	L/min (cfm)	95<160> (3.6<5.6>)	130<180>{205} (4.6<6.4>{7.2})	145<205>{210} (5.1<7.2>{7.4})	160<220> (5.6<7.7>)
Paint spraying volume	mL/min	85 <70>	125 <120> (145)	155 <135> (175)	215 <180>
Maximum effective pattern width	mm (in)	135<165> (5.315<6.496>)	160<185>{160} (6.300<7.283>{6.300})	170<195>{170} (6.693<7.677>{6.693})	190<210> (7.480<8.268>)
Pattern Shape		Triangle <Tulip> (Semi-Tulip)
Required compressor output	kW	0.4<1.5> or more	0.75<1.5>(1.5) or more
Weight	g (lbs) [oz]	292 (0.64) [10.3]
Standard paint cup		7SB,10SB-2,7SLB,10SLB-2

Model No.		F111-G10 <F111-G10T>	F111-G13 <F111-G13T> {F111-G13ST}	F111-G15 <F111-G15T> {F111-G15ST}	F111-G20 <F111-G20T>
Paint feed system		Gravity
Nozzle Bore	mm (in)	1.0 (0.039)	1.3 (0.051)	1.5 (0.059)	2.0 (0.079)
Standard air cap		10 <10T>	13 <13T> {13ST}	15 <15T> {15ST}	20 <20T>
Spraying Pressure	MPa (PSI)	0.25<0.20>{0.25} (36<29>{36})
Spraying sidtance	mm (in)	200 (7.784)
Air con-sumption	L/min (cfm)	95<160> (3.6<5.6>)	130<180>{205} (4.6<6.4>{7.2})	145<205>{210} (5.1<7.2>{7.4})	160<220> (5.6<7.7>)
Paint spraying volume	mL/min	100 <90>	150 <145> (170)	190 <175> (210)	265 <235>
Maximum effective pattern width	mm (in)	145<185> (5.709<7.283>)	170<215>{180} (6.693<8.465>{7.087})	185<225>{190} (7.283<8.858>{7.480})	200<240> (7.874<9.494>)
Pattern Shape		Triangle <Tulip> (Semi-Tulip)
Required compressor output	kW	0.4<1.5> or more	0.75<1.5>(1.5) or more
Weight	g (lbs) [oz]	292 (0.64) [10.3]
Standard paint cup		1G-2U,2GD,4GD,4GF-U,4GB-U,4GPA-U,4G-TA

Model No.		F111-G08R	F111-G25R
Paint feed system		Gravity
Nozzle Bore	mm (in)	0.8 (0.031)	2.5 (0.098)
Standard air cap		08R	25R
Spraying Pressure	MPa (PSI)	0.25 (36)
Spraying sidtance	mm (in)	200 (7.784)
Air con-sumption	L/min (cfm)	65 (2.3)	160 (5.6)
Paint spraying volume	mL/min	55	350
Maximum effective pattern width	mm (in)	35 (1.378)	50 (1.969)
Pattern Shape		Round
Required compressor output	kW	0.4 or more	1.5 or more
Weight	g (lbs) [oz]	292 (0.64) [10.3]
Standard paint cup		1G-2U,2GD,4GD,4GF-U,4GB-U,4GPA-U,4G-TA
● Paint viscosity : 20 seconds for lacquer enamel using Meiji V-1 viscosity cup . For a pressure feed type , a pressure feed pressure of 0.0 8MPa . ● Display : 12 seconds for automobile-repair paint using Meiji V-1 viscosity cup .
