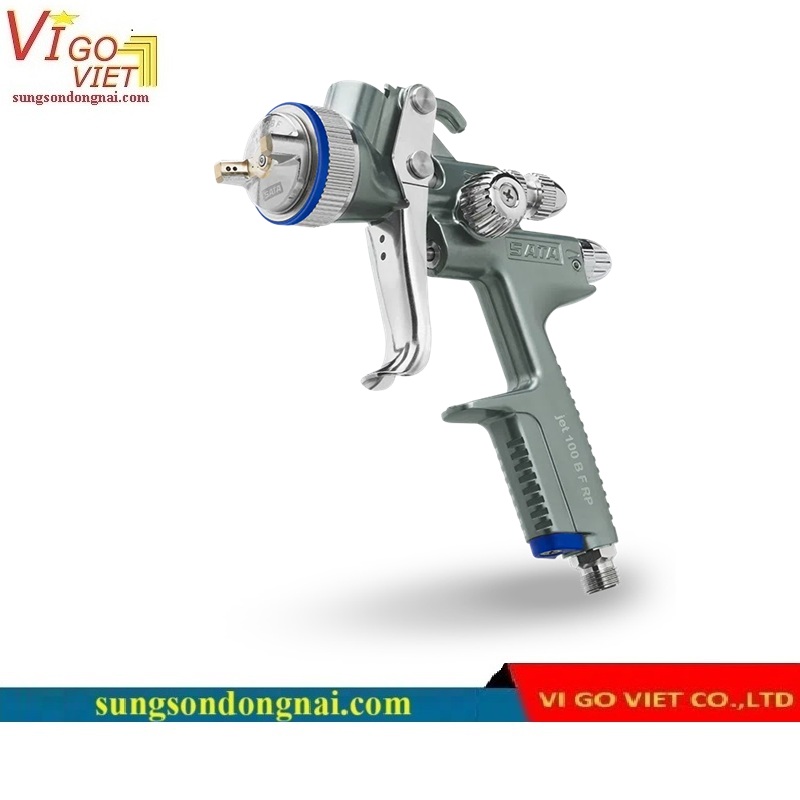

Súng phun sơn SATAjet 100 B

Mã sản phẩm:

Tên sản phẩm: Súng phun sơn SATAjet 100 B

Hãng sản xuất: Sata

Xuất xứ: Đức (Made in Germany)

Tiết kiệm. Ít bảo trì. Kinh tế.
SATAjet 100 B có thể được sử dụng cho nhiều ứng dụng khác nhau nhờ tính linh hoạt cao trong việc thiết lập áp suất phun. Nhờ quạt phun rộng và khả năng phun mịn, chất độn và sơn lót có thể được phun liên tục mặc dù độ nhớt của vật liệu cao hơn. Điều này giúp tiết kiệm thời gian làm việc đáng kể do ít phải mài hơn.

Hai lựa chọn cho kết quả hoàn hảo: HVLP và RP

HVLP: Siêu tiết kiệm – Súng phun sơn HVLP đạt tốc độ truyền tải đặc biệt cao nhờ công nghệ áp suất thấp.

RP: Siêu nhanh – Súng phun RP cho tốc độ làm việc tối đa với công nghệ áp suất cao được tối ưu hóa và ít phun quá mức.

Cả hai loại đều có thể được sử dụng rất linh hoạt, đáp ứng những yêu cầu cao nhất về kết quả sơn và rõ ràng vượt quá tốc độ truyền tải 65% theo quy định của chỉ thị VOC.

Technical data

MetricImperial

Technical Information – HVLP

Air consumption	350,0 Nl/min
Max. inlet air pressure	10,0 bar
Packaging unit	1,0 Pieces
Net weight	0,092 – 1,114 kg
Recommended air inlet pressure	2,0 bar
Recommended spraying distance	10 – 15 cm
Cup connection type	QCC
Nozzle Size	1,4 / 1,7 / 1,9 / 2,1
Nozzle Technology	HVLP
Color Code System (CCS)	✓
QCC	✓
Compatibility with SATA RPS – multi-purpose cups / LCS	✓
SATA adam compatibility	✓
Premium warranty capable	✓

* All information without guarantee – errors and changes reserved.

** All data refer to the entire product range and not to individual variants.

Technical Information – RP

Air consumption	290,0 Nl/min
Max. inlet air pressure	10,0 bar
Packaging unit	1,0 Pieces
Net weight	0,092 – 1,114 kg
Recommended air inlet pressure	2,0 bar
Recommended spraying distance	17 – 21 cm
Cup connection type	QCC
Nozzle Size	1,1 UV / 1,4 / 1,6 / 1,8 / 2,0
Nozzle Technology	RP
Color Code System (CCS)	✓
QCC	✓
Compatibility with SATA RPS – multi-purpose cups / LCS	✓
SATA adam compatibility	✓
Premium warranty capable	✓

* All information without guarantee – errors and changes reserved.

** All data refer to the entire product range and not to individual variants.

Technical Information – P

Air consumption	245,0 Nl/min
Max. inlet air pressure	10,0 bar
Packaging unit	1,0 Pieces
Net weight	0,092 – 0,810 kg
Recommended air inlet pressure	2,0 bar
Recommended spraying distance	17 – 21 cm
Cup connection type	QCC
Nozzle Size	P
Nozzle Technology	P
Color Code System (CCS)	✓
QCC	✓
Compatibility with SATA RPS – multi-purpose cups / LCS	✓
SATA adam compatibility	✓
Premium warranty capable	✓

* All information without guarantee – errors and changes reserved.

** All data refer to the entire product range and not to individual variants.

Technical data

MetricImperial

Technical Information – HVLP

Air consumption	12.4 cfm
Max. inlet air pressure	145.0 psi
Packaging unit	1.0 Pieces
Net weight	0.203 – 2.456 lbs
Recommended air inlet pressure	29.0 psi
Recommended spraying distance	4 – 6 inch
Cup connection type	QCC
Nozzle Size	1.4 / 1.7 / 1.9 / 2.1
Nozzle Technology	HVLP
Color Code System (CCS)	✓
QCC	✓
Compatibility with SATA RPS – multi-purpose cups / LCS	✓
SATA adam compatibility	✓
Premium warranty capable	✓

* All information without guarantee – errors and changes reserved.

** All data refer to the entire product range and not to individual variants.

Technical Information – RP

Air consumption	10.2 cfm
Max. inlet air pressure	145.0 psi
Packaging unit	1.0 Pieces
Net weight	0.203 – 2.456 lbs
Recommended air inlet pressure	29.0 psi
Recommended spraying distance	7 – 8 inch
Cup connection type	QCC
Nozzle Size	1.1 UV / 1.4 / 1.6 / 1.8 / 2.0
Nozzle Technology	RP
Color Code System (CCS)	✓
QCC	✓
Compatibility with SATA RPS – multi-purpose cups / LCS	✓
SATA adam compatibility	✓
Premium warranty capable	✓

* All information without guarantee – errors and changes reserved.

** All data refer to the entire product range and not to individual variants.

Technical Information – P

Air consumption	8.7 cfm
Max. inlet air pressure	145.0 psi
Packaging unit	1.0 Pieces
Net weight	0.203 – 1.786 lbs
Recommended air inlet pressure	29.0 psi
Recommended spraying distance	7 – 8 inch
Cup connection type	QCC
Nozzle Size	P
Nozzle Technology	P
Color Code System (CCS)	✓
QCC	✓
Compatibility with SATA RPS – multi-purpose cups / LCS	✓
SATA adam compatibility	✓
Premium warranty capable	✓

* All information without guarantee – errors and changes reserved.

** All data refer to the entire product range and not to individual variants.

Article number

HVLP versions

Nozzle Size	HVLP 0,6 l QCC Reusable cups	HVLP 0,75 l Aluminium cup	HVLP 1 l Aluminium cup	HVLP RPS
1,4	146373	147447	146399	1012674
1,7	145722	146175	146191	1012682
1,9	145730	146183	146209	1012690
2,1	145748	147454	147462	1012707

RP versions

Nozzle Size	RP 0,6 l Reusable cups	RP 0,75 l Aluminium cup	RP 1 l Aluminium cup	RP RPS
1,1 UV	182592	–	–	203125
1,4	146969	153023	153460	189613
1,6	145193	146134	146159	175174
1,8	145201	146142	146167	175182
2,0	145219	147421	147439	1012666

Polyester versions

Nozzle Size	100 B P
P	147470

Nozzle set

Nozzle Size	HVLP	RP	P
1,1 UV	–	182600	–
1,4	146381	146977	–
1,6	–	145250	–
1,7	145417	–	–
1,8	–	145268	–
1,9	145425	–	–
2,0	–	145276	–
2,1	145433	–	–
P	–	–	145284

* All information without guarantee – errors and changes reserved.

Downloads

Paint Application Charts

Lackierpistole_CF1931082_imperial_en.pdf / 3.58 MB

Download

Paint Application Charts

Lackierpistole_CF1931082_metrisch_en.pdf / 3.58 MB

Download

EN – Operating Instructions – SATAjet 100 B

BETRIEBSANLEITUNG-SATAJET-100-B.pdf

Download

EN – EC Declaration of Conformity – SATAjet 100 B

EG-KONFORMITATSERKLARUNG-SATAJET-100-B.pdf

Download
