Mã sản phẩm:F110L-P

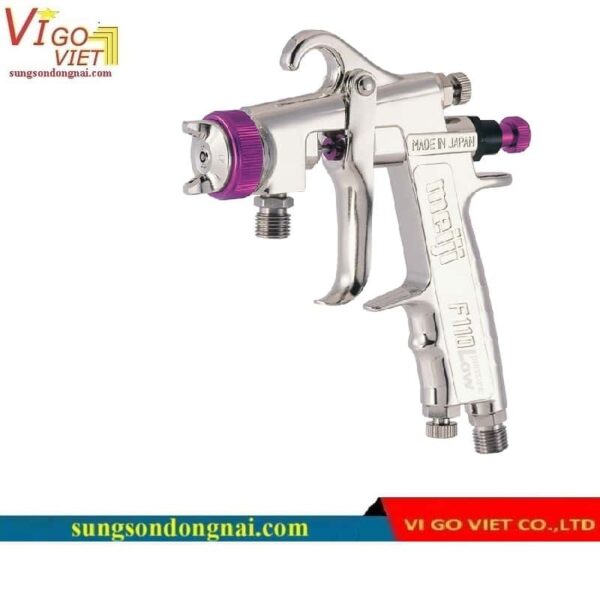

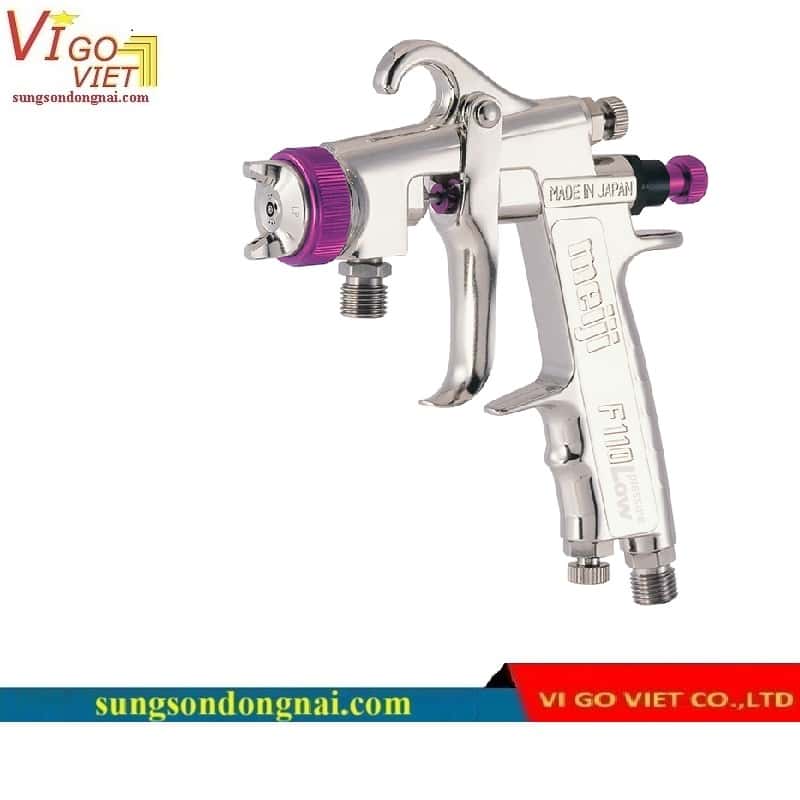

Tên sản phẩm:Súng phun tay: Loại phun sương áp suất thấp F110L-P
Hãng sản xuất:
Xuất xứ:
| ▼F110L Series | |||||||
| Model No. | F110L-P08LP | F110L-P10LP | F110L-P13LP | F110L-S20LS | F110L-G13LS | F110L-G15LS | |
|---|---|---|---|---|---|---|---|
| Paint feed system | Pressure | Suction | Gravity | ||||
| Nozzle bore | mm
(in) |
0.8
(0.031) |
1.0
(0.039) |
1.3
(0.051) |
2.0
(0.098) |
1.3
(0.051) |
1.5
(0.059) |
| Spraying pressure | MPa
(PSI) |
0.18
(26) |
0.15
(22) |
0.12
(17) |
|||
| Air pressure inside cap | MPa
(PSI) |
0.07
(10) |
0.05
(7) |
||||
| Spraying distance | mm
(in) |
200
(7.874) |
|||||
| Air consumption | L/min
(cfm) |
345
(12.2) |
265
(9.4) |
235
(8.3) |
|||
| Paint spraying volume | mL/min | 165 | 225 | 320 | 110 | 100 | 115 |
| Maximum effective
pattern width |
mm
(in) |
230
(9.055) |
250
(9.843) |
270
(10.630) |
270
(10.630) |
260
(10.236) |
270
(10.630) |
| Required
compressor output |
kW | 3.7 or More | |||||
| Weight | g
(lbs) [oz] |
308
(0.68) [10.9] |
|||||
| Standard paint cup | Paint pressure feed tanks,
diaphragm paint pumps |
7SB, 10SB-2, 7SLB |
1G-2U,
2GD, 4GD, 4GB-U, 4GP(A)-U, 4G-TA |
||||
| Measurement | m3 | 0.06/25PC | |||||
| Paint viscosity should be 20 seconds for lacquer enamel using a Meiji model V-1 viscosity cup. Feed pressure should be 0.08MPa for P types. |
|||||||
